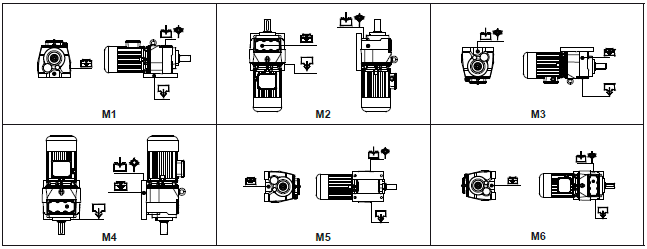

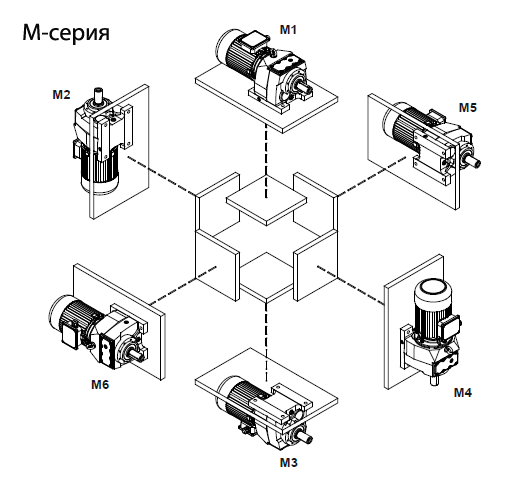

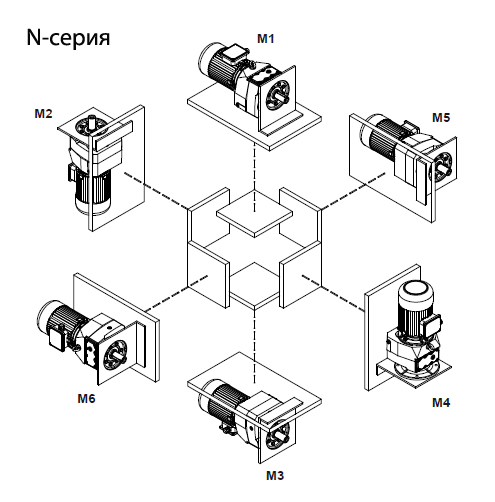

Монтажные положения, и количество масла Yilmaz |
| |
Тип |
Монтажные положения, кол-во масла, литры |
M1 |
M2 |
M3 |
M4 |
M5 |
M6 |
M002 / 003 |
0.4 / 0.35 |
0.6 / 0.55 |
0.5 / 0.5 |
0.6 / 0.55 |
0.5 / 0.4 |
0.5 / 0.4 |
M102/103 |
0.65 / 0.6 |
0.95 / 0.8 |
0.7 / 0.7 |
0.95 / 0.8 |
0.7 / 0.7 |
0.7 / 0.7 |
M172/173 |
0.7 / 0.65 |
0.95 / 0.9 |
0.8 / 0.8 |
0.95 / 0.9 |
0.8 / 0.7 |
0.8 / 0.7 |
M202 / 203 |
1.2 / 1.1 |
2.1 / 2 |
2 / 1.9 |
2.1 / 2 |
1.4 / 1.3 |
1.4 /1.3 |
M272 / 273 |
1.1 / 1 |
2 / 1.7 |
1.9/ 1.5 |
2 / 1.7 |
1.3 / 1.2 |
1.3 / 1.2 |
M282 / 283 |
1.7 / 1.6 |
3 / 2.85 |
2.8 / 2.5 |
3 / 2.85 |
2.6 / 2.4 |
2.6 / 2.4 |
M372 / 373 |
2 / 1.9 |
3.4 / 3.3 |
3.1 / 3 |
3.4 / 3.3 |
2.8 / 2.6 |
2.8 / 2.6 |
M472 / 473 |
4.5 / 4 |
8 / 7.6 |
7.5 / 7 |
8 / 7.6 |
5.5 / 5 |
5.5 / 5 |
M572 / 573 |
7 / 6 |
12.8 / 11.7 |
11.5 / 10.5 |
12.8 / 11.7 |
8 / 7.5 |
8 / 7.5 |
M672 / 673 |
10 / 8.5 |
22.5 / 20 |
20 / 18 |
22.5 / 20 |
11 / 11 |
11 / 11 |
M772 / 773 |
20 / 18 |
35 / 32 |
30 / 28 |
35 / 32 |
22 / 20 |
22 / 20 |
M872 / 873 |
28 / 20 |
53 / 45 |
45 / 39 |
53 / 45 |
30 / 28 |
30 / 28 |
M972 / 973 |
53 / 50 |
90 / 87 |
82 / 80 |
90 / 87 |
70 / 65 |
70 / 65 |
|
| |
